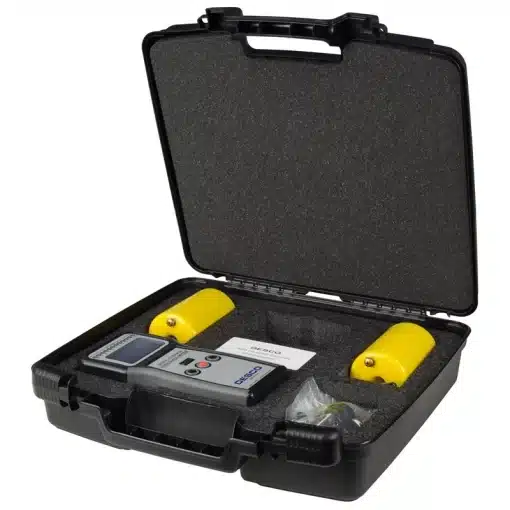

El kit medidor digital de resistencia superficial Desco 19290 está diseñado para medir la resistencia punto a punto (Rtt) o de superficie a tierra (Rtg).
Funciones principales:
- Rango de resistencia: <1 × 10³ ohmios a >1 × 10¹² ohmios
- Tensiones de prueba: 10 V y 100 V ±5% bajo carga
- Tiempo de electrificación: aproximadamente 15 segundos
El medidor también registra la temperatura ambiente y la humedad relativa. Se pueden almacenar y recuperar hasta 100 mediciones en la memoria interna, incluyendo el valor de resistencia, la temperatura, la humedad relativa y el voltaje de prueba al momento de la medición.
The Desco 19290 Digital Surface Resistance Meter Kit is designed to measure point-to-point (Rtt) or surface-to-ground (Rtg) resistance.
Key features include:
- Resistance range from <1 × 10³ ohms to >1 × 10¹² ohms
- Test voltages of 10 V and 100 V ±5% under load
- Electrification period of approximately 15 seconds
The meter also measures ambient temperature and relative humidity. Up to 100 measurements can be stored and recalled from the internal memory, including resistance values, temperature, relative humidity, and test voltage at the time of measurement.
